SPECIFICATIONS
Application: Desktop
Audio Channels: 5.1
Back I/O Ports: 1x RJ45,VGA(D-Sub),HDMI 1.0,4x USB 3.2/3.1 Gen 1,Displayport
Brand Name: SOYO
Chipset: Intel B660
Chipset Manufacturer: Intel
Form Factor: Micro-ATX
Max LAN Speed: 2500Mbps
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 1
Number of PCI: 0
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 2
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),8-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI - E 4.0
Package: Yes
Processor compatibility: 12th Intel Core i5,13th Intel Core i5,12th Intel Core i3
Quality Certification: ce
RAID Supported: YES
SATA RAID: 1
Socket Type: LGA 1700
Special Function: Support For Overclocking
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.2 Gen1
Supports M.2 SSD: 2280,2260
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute
With CPU: No
The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and customγThe box has only 2 M.2 SSD fixing screws (studs + screws) and 1 SATA cableγ
SOYO classic B660M 2.5G motherboard can be updated to the latest BIOS version B1.4G, supports 13th generation Intel Core CPU, and also compatible with 12th generation Intel Core CPU
When you receive the motherboard, if you encounter some compatibility, BIOS, and system problems, please contact customer service, and the technicians will answer your questions for you.

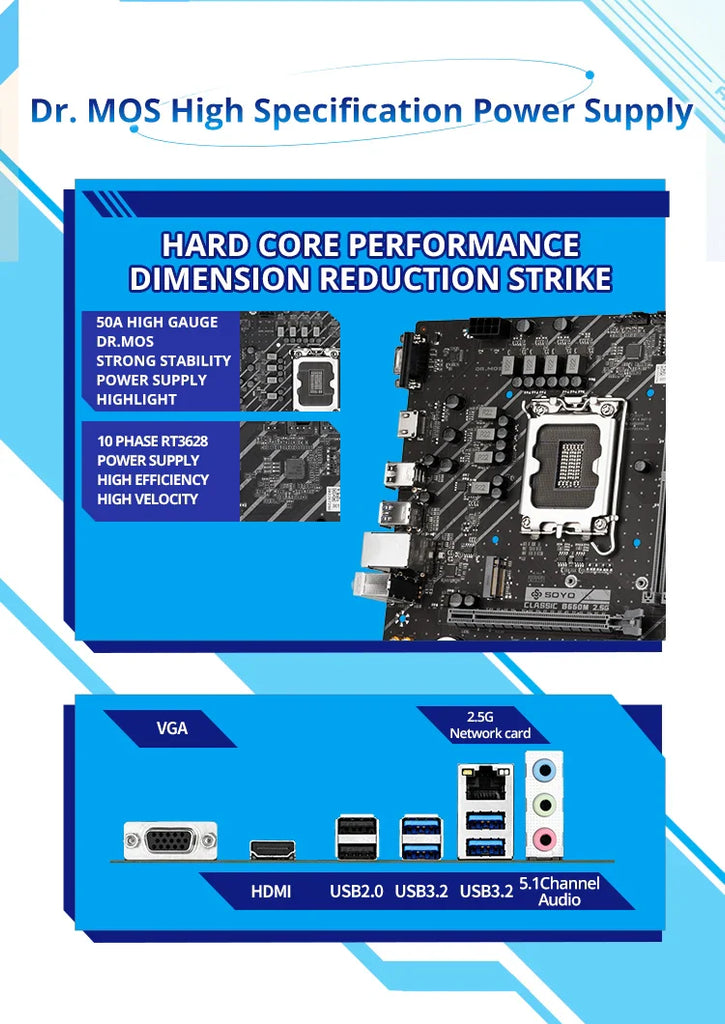

50A high gauge DR.MOS Strong and stable power supply,
10-phase RT3628 digital power supply Taking into account high efficiency and high response speed
Dual gold-plated DDR4 memory interface, dual-channel high bandwidth
High-speed M.2 interface, different heights are designed for heat dissipation
2.5G network card new upgradeThe classic RTL8125B network card chiprovides 2500Mbps
SY-Classic B660M 2.5G Specifications
CPU socket: LGA1700 (Intel 12th generation processor)
Radiator: only supports LGA1700 interface, does not support LGA15XX (Please refer to the actual product for the buckle hole)
Chipset: Intel B660 Chipset
Version: MATX board (22.5*19.5cm)
Power supply design: 50A high specification Dr.Mos, 8+1+1 phase enhanced digital power supply, 8Pin enhanced contact CPU power supply
Memory Specifications: Dual-channel dual-slot DDR4 memory interface
PCle interface: 1 PCle 4.0 X16 enhanced interface, 1 PCle3.0 X1 interface
M.2 interface: 1 PCle X4 rate interface, supports 2280/2240 specifications
SATA interface: 3 SATA3_6G rate interfaces
Video interface: 1 HDMI interface, 1 VGA interface; support dual-screen output of nuclear display
USB3.2 interface: 4 rear IO USB3.2 Gen1 interfaces, 1 set of front USB3.2 Gen1 pins
Other USB ports: 2 USB2.0 ports at rear IO, 1 set of front USB2.0 pins
Fan interface: 4 4Pin fan interfaces
Onboard button: CLRCmos easy to clear button
Sound card: 5.1-channel sound card (supports sound recognition)
Network card: 2.5G network card
Debug light: support (CPU, DRAM, VGA, BOOT)
